Alarm Systems

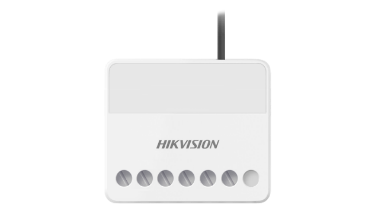

433MHz AX PRO Series Relay Module

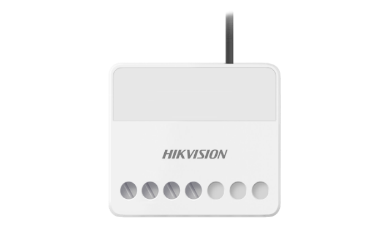

433MHz AX PRO Series Wall Switch

Single Input Transmitter

AX Hybrid Pro Panel 8 on-board zones and 56 wired/wireless zones expandable；4 on-board outputs（2 relay outputs & 2 I/O outputs） and 60 wired/wireless outputs expandable power supply: 110 - 220V AC Operation temperature -10℃ to 40℃

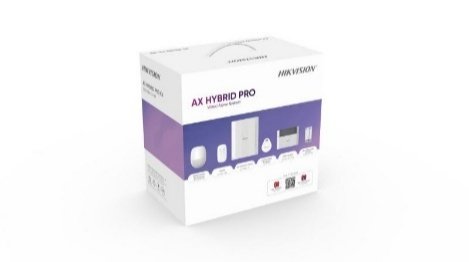

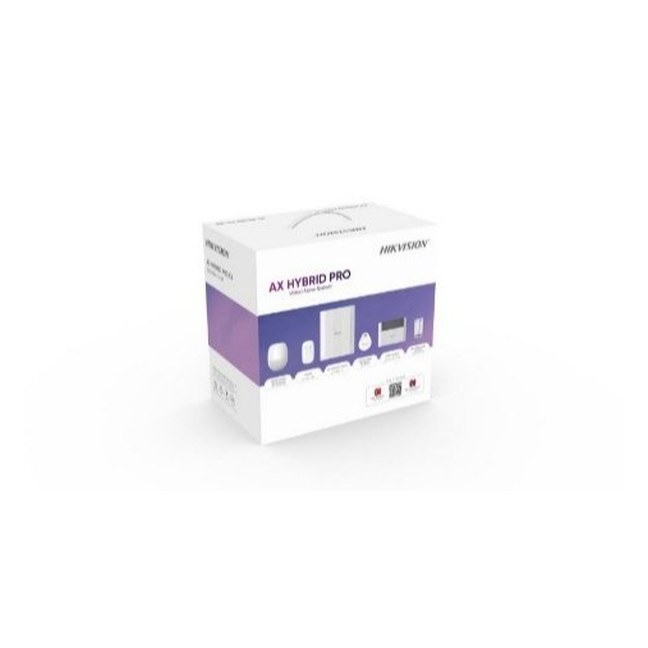

AX Hybrid Pro Kit（433MHz） DS-PHA64-LP(B) *1 DS-PK1-LRT-HWB *1 DS-PD1-MC-WS *1 DS-PDP18-EG2(B) *2 DS-PKF1-WB *1 DS-PT-M1 *2

Wired LCD Keypad LCD screen display Supports one-touch arm（Arming without password） Supports Fire/Panic/Medical alarm key Supports company name, phone number, time display Supports 2 on-board alarm inputs and 1 on-board alarm output Supports maximum 64 keyfobs

Wired Input Expander（Cascade） 8 on-board wired zones Support 3EOL connection(Alarm：1KΩ；Tamper：1KΩ；Fault：2.2KΩ) Support zone alarm，tamper，masking，fault，short detection 1 power output for wired detectors 2 Speed-X bus, supporting wired input expander cascade mode

wired expander Supports 4 onboard power relays，each relay can handle current of up to 16A Powered by Speed-X technology，supporting expander cascading with 1 uplink Speed-X port and 1 downlink Speed-X port

3G/4G Communication Module(EU) FDD-LTE B1/B3/B7/B8/B20 Dual-Band UMTS/HSDPA/HSPA+B1/B8 GSM/GPRS/EDGE 900/1800MHz

Sounder PC+ABS shell Red/Blue colors for option 105dB at 30cm IP54 Protective level Sound and LED Flash indication separately Easy installation with new designed structure

Wired I&O Expander 4 on-board low current relays, supporting 6-30V and up to 5A current 1 power output, maximum 500mA Powered by Speed-X technology，supporting expander cascading with 1 uplink Speed-X port and 1 downlink Speed-X port

PIR Detector Detection range: 18M, 85.9 degree Alarm: Tamper alarm, intruder alarm Pet-immunity: up to 10kg within 10m

PIR Detector Detection range: 15M, 6.3 degree Alarm: Tamper alarm, intruder alarm Selectable EOL resistors for alarm and tamper-proof wiring

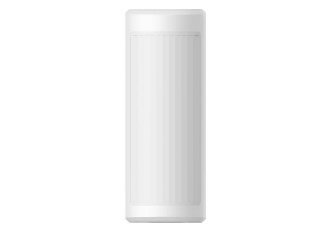

HIKVISION Wired Triple Signal outdoor Detector

Detection range: 12m / 85.9° BUS PIRCAM Up to 30KG pet immunity SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics Polarizing IR lens design for more uniform night illumination and excellent night shots Large integrated memory buffer for image storage Fully remote configurable through App

ABS plating shell Connection type: NC Desohmed for the surface mounting on wood door Dimension(L x W x H): 63.5mm x 12.5mm x 15.7mm 63.5mm x 12.5mm x 12.5mm (Magnet)

Metal plating shell Connection type: NC Designed for doors or windows Dimension(L x W x H): 50mm x 18mm x 10mm

Metal plating shell Connection type: NC Designed for rolling door Surface mounting

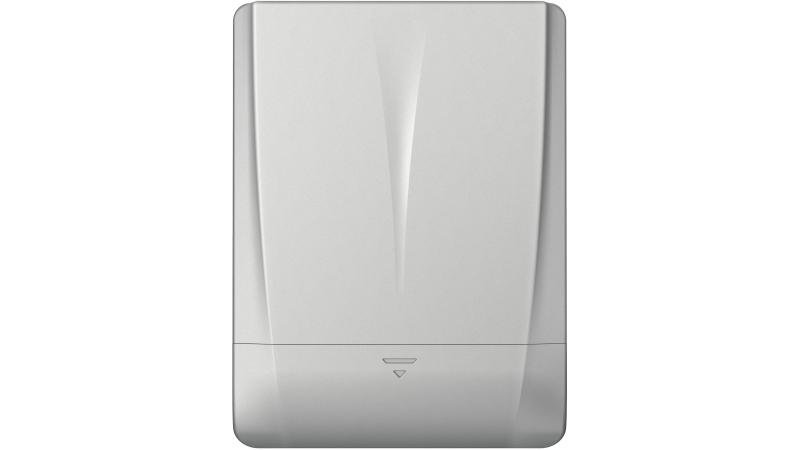

Wired Shock Detector NC;12VDC;EN Grade3

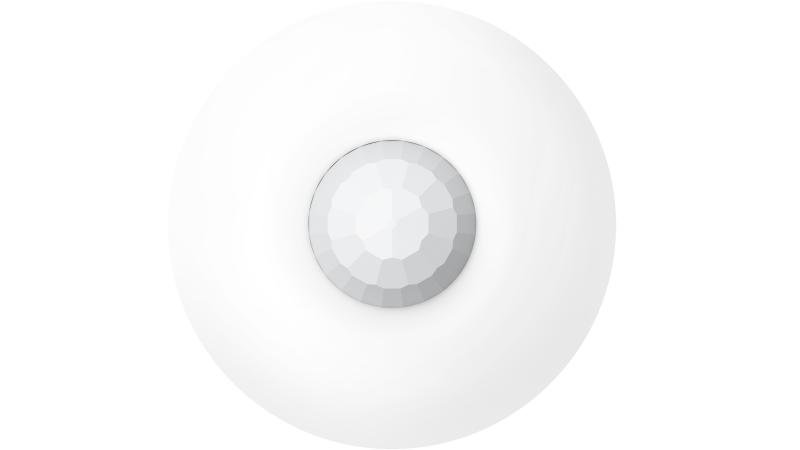

Ceiling PIR Detector Detection range:12m

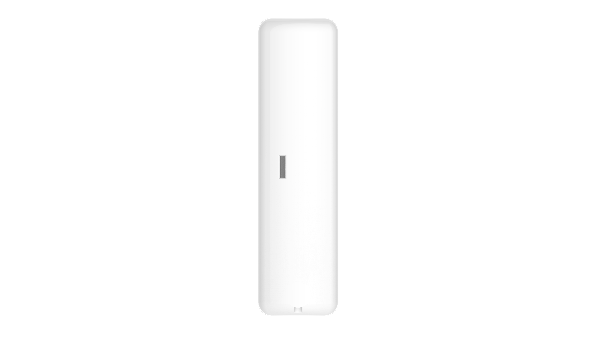

Shock Detector Potentiometer Adjustment LED Latch support
